Menyoroti:
mesin penggilingan vmc 850
, vmc 850 cnc
, vmc850 pusat pemesinan vertikal
Condition: |
New |
Spindle Taper: |
BT40 |
No. of Spindles: |
Single |
Type: |
VERTICAL |
Dimension(L*W*H): |
2100*1950*2200mm |
Weight (T): |
3 T |
Table Size (mm): |
1050*500 |
CNC Control System: |
GSK, FANUC, MITSUBISHI, KND, Siemens |
Number of Axes: |
3, 4, 5 |
Perjalanan Meja (X) (mm): |
800 |
Table Travel (Y) (mm): |
500 |
Table Travel (Z) (mm): |
500 |
Positioning Accuracy (mm): |
±0.005 |
Repeatability (X/Y/Z) (mm): |
±0.004 |
Range of Spindle Speed(r.p.m): |
1 - 8000 r.p.m |
Spindle Motor Power(kW): |
5.5 |
Max. Table Load(kg): |
300 kg |
Feed Speed(mm/min): |
1 - 10000 mm/min |
Rapid Feed Speed(m/min): |
10 |
Min. Time of Tool Change(s): |
2 |
Kapasitas Majalah Alat: |
16, 24 |
Key Selling Points: |
Competitive Price |
Warranty: |
1 Year |
Tegangan: |
380v |
Industri yang berlaku: |
Bengkel Mesin, Pabrik Manufaktur, Pekerjaan Konstruksi |
Lokasi Showroom: |
Italia, Vietnam, Brasil, Peru, Indonesia, Meksiko, Rusia, Sri Lanka, Ukraina |
Jenis pemasaran: |
Produk Panas 2023 |
Machinery Test Report: |
Provided |
Video outgoing-inspection: |
Provided |
Warranty of core components: |
1 Year |
Core Components: |
Motor |
Product name: |
CNC Machining Center Price |
Model: |
VMC850 |
Worktable size: |
1050*500mm |
Max.speed of spindle: |
8000r/min |
Tool magazine: |
16/24 |
CNC Controller: |
Fanuc Siemens KND GSK |
Guide way type: |
Linear or Hard guide way type |
Keywords: |
Vertical Machining Center |
Usage: |
Metal turning and machining |
Max.tool length: |
300mm |
Pelabuhan: |
Qingdao Port. Pelabuhan Qingdao. China. Cina. or as customer's re |

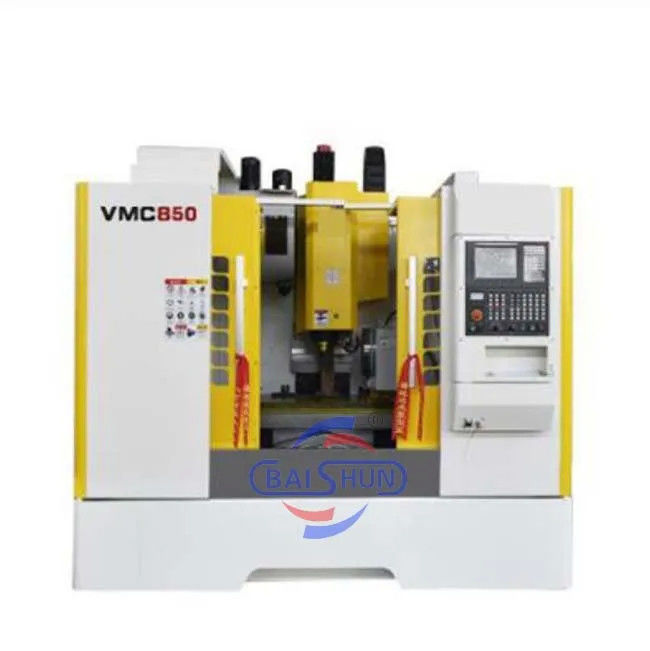

Vmc850 Vertical Machining Center Cnc Milling 5 Axis Metal Processing Torno Lathe
