B5040 Vertical Keyway Slotting Machine 400mm Max Length

Name: B5040 Vertical Keyway Slotting Machine 400mm Max Length
Brand: Henan Baishun Machinery Equipment Co., Ltd.
SKU: B5040
Price: 96,300.00 USD
Availability: InStock

Rincian Produk

Tempat asal: Cina

Nama merek: Baishun

Sertifikasi: ISO

Nomor model: B5040

Dokumen: Brosur Produk PDF

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 1 set

Harga: negotiable

Kemasan rincian: Paket kotak kayu standar ekspor

Waktu pengiriman: 20 hari kerja

Syarat-syarat pembayaran: T/T, L/C, Western Union

Menyediakan kemampuan: 100 Set/Set per Bulan

Dapatkan Harga Terbaik

Rincian Produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                vertical keyway slotting machine 400mm, metal slotting machine with warranty, keyway slotting machine 400mm length


nama:	Mesin slotting B5040	Model:	B5040
Max.slotting Length:	400mm	Inspeksi keluar video:	Asalkan
Laporan Tes Mesin:	Asalkan	Pengontrol:	Plc
Voltase:	380v/50hz atau sesuai kebutuhan pelanggan	Jaminan:	1 tahun
Kekuatan (KW):	4	Kata kunci:	Mesin slot

nama:	Mesin slotting B5040
Model:	B5040
Max.slotting Length:	400mm
Inspeksi keluar video:	Asalkan
Laporan Tes Mesin:	Asalkan
Pengontrol:	Plc
Voltase:	380v/50hz atau sesuai kebutuhan pelanggan
Jaminan:	1 tahun
Kekuatan (KW):	4
Kata kunci:	Mesin slot

B5040 Vertical Keyway Slotting Machine 400mm Max Length

Metal Steel Vertical Keyway Slotting Machine B5040 Slotting Machine for Sale:

The main performance characteristics:
1.The working table of the machine tool is provided with three different directions of feed (longitudinal, horizontal and rotary),
therefore work object go through once clamping, Several surfaces in the machine tool machining
2.Hydraulic transmission mechanism with sliding pillow reciprocating motion and hydraulic feed device for working table.
3.The sliding pillow has the same speed in every stroke, and the movement speed of the ram and the working table can be adjusted
continuously.
4.Hydraulic control table have ram commutation oil for oil reversing mechanism, In addition to hydraulic and manual feed outer,
Even there single motor drive vertical, horizontal and rotary fast moving.
5.Use hydraulic feed the slotting machine, Is when the work is over turning back instantaneous feed, Therefore be better than
mechanical slotting machine used drum wheel feed.

Application:
1. This machine be used for interpolation plane, forming surface and Keyway Etc. And can insert the inclination in the 10° Mold
and other within the scope of etc. work matter.
2. Enterprise suitable for single or small batch production.

Product main technical parameters:

Specification	Unit	B5020	B5032	B5040
Max. stroke of RAM	mm	220	340	400
Ram maximum slotting length	mm	200	320	500
Ram motion frequency	times/min	32.50.80.125	20.32.50.80	20.32.50.80
Ram tilt angle	°	0-8	0-8	0-8
Ram vertical adjustment distance	mm	230	315	315
Cutter head bearing surface to the distance between the forearm bed	mm	485	600	600
Table Diameter	mm	500	630	630
The distance between the lower end of the sliding frame to work table	mm	320	490	600
Max. longitudinal moving distance of working table	mm	500	630	690
Max. transverse moving distance of working table	mm	500	560	620
Table maximum rotation angle	°	360	360	560
Vertical and horizontal table power feed range	mm	0.08-1.21	0.08-1.21	0.08-1.21
Table rotary feed range	mm	0.052-0.783	0.052-0.783	0.052-0.783
Motor power	kw	3	4	4
Motor speed	r/min	1430	960	960
Machine weight	kg	2200	3000	3700
Outline dimension	mm	191613051995	226114952245	229015252485

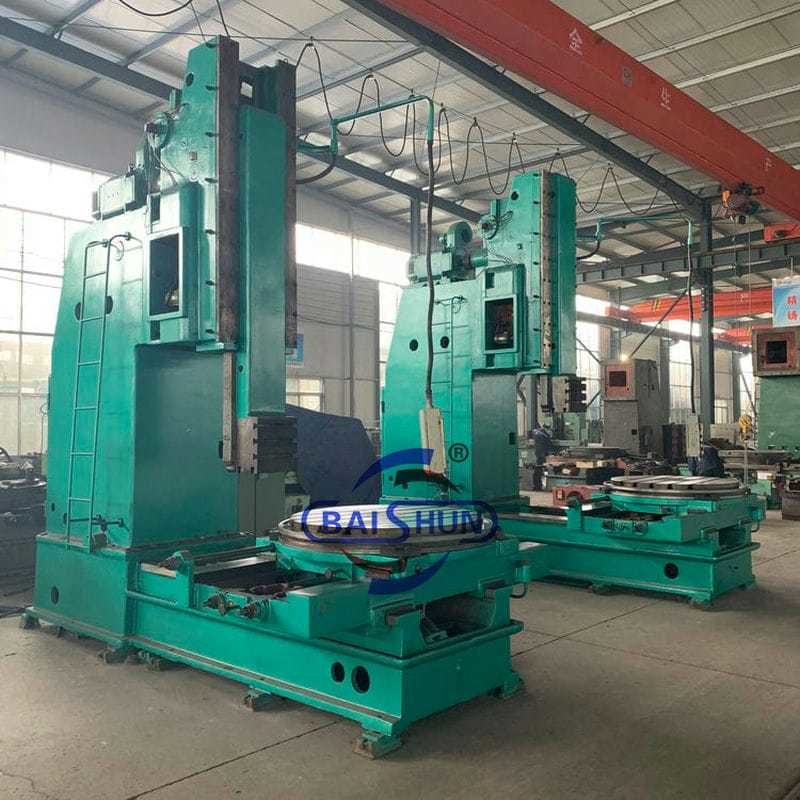

Machine picture:

B5040 Vertical Keyway Slotting Machine 400mm Max Length 0

B5040 Vertical Keyway Slotting Machine 400mm Max Length 3

For more detail specification please contact:
