Spindle Auto Feeding Drilling And Tapping Machines Radial Arm Drilling Machine Price

Name: Spindle Auto Feeding Drilling And Tapping Machines Radial Arm Drilling Machine Price
Brand: Henan Baishun Machinery Equipment Co., Ltd.
SKU: Z3080
Price: 96,300.00 USD
Availability: InStock

Rincian Produk

Tempat asal: Cina

Nama merek: BAISHUN

Sertifikasi: ISO

Nomor model: Z3080

Dokumen: Brosur Produk PDF

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order: 1 set

Harga: negotiable

Kemasan rincian: Paket kotak kayu standar ekspor

Waktu pengiriman: 20-25 hari kerja

Syarat-syarat pembayaran: L/C,T/T,Western Union

Menyediakan kemampuan: 100 set per bulan

Dapatkan Harga Terbaik

Rincian Produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                auto feeding radial drilling machine, spindle tapping radial arm drill, radial drilling machine with warranty


Nama Produk:	Harga Mesin Bor Lengan Radial	Diameter pengeboran maksimal:	80mm
Perjalanan Spindel (Mm):	450mm	Sudut pengukuran radial:	360°
Presisi:	Ketepatan	Motorik Utama:	7.5kw
Catu daya:	220V/380V/415V	Fungsi:	Pengeboran dan mengetuk
Spindel lancip:	Morse Lancip6	Kata-kata kunci:	Mesin Pengeboran Lengan Radial

Nama Produk:	Harga Mesin Bor Lengan Radial
Diameter pengeboran maksimal:	80mm
Perjalanan Spindel (Mm):	450mm
Sudut pengukuran radial:	360°
Presisi:	Ketepatan
Motorik Utama:	7.5kw
Catu daya:	220V/380V/415V
Fungsi:	Pengeboran dan mengetuk
Spindel lancip:	Morse Lancip6
Kata-kata kunci:	Mesin Pengeboran Lengan Radial

Spindle Auto Feeding Drilling And Tapping Machines Radial Arm Drilling Machine Price

Spindle Auto Feeding Drilling And Tapping Machines Radial Arm Drilling Machine Price:

Product Overview

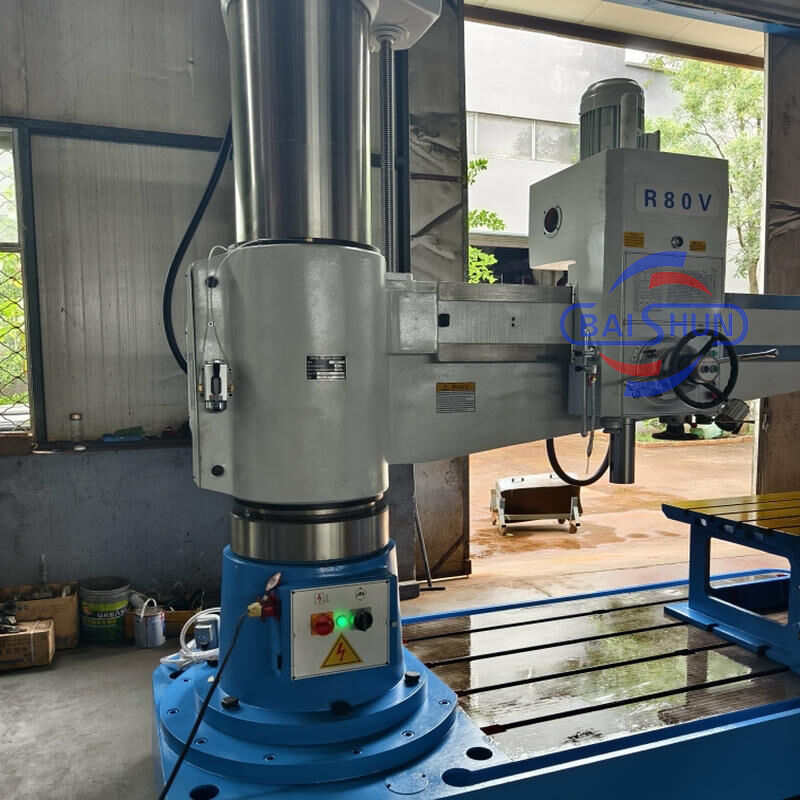

Automatic Feed Drilling Machine Z3080 Radial Drill Machine

Radial drilling machine is a kind of hole processing equipment, which can be used for drilling, reaming, reaming, tapping, end face repair and other forms of processing. Tradial drilling machine is with extensive use of universal machine, suitable for in machinery manufacturing departments in the processing of small parts, drilling, reaming, reaming, countersink flat and tapping. In process equipment conditions, can also be used for boring.According to the clamping structure of machine tools, radial drills can be divided into hydraulic radial drilling machines and mechanical radial drilling machines. Among all kinds of drilling machines, radial drilling machines are easy to operate, flexible, widely applicable and typical, especially suitable for single piece or batch production of holes with large porous parts. They are common machine tools in general machining workshops.

1. Gather mechanical-electrical-hydraulic functions, use extensively.

2. With wide range of speed and feed, with manual,power and fine feeds.

3. The feed of machines are very easily engaged and disengaged at any time.

4. With safety and reliable feed safety machine, all parts easy operation and change.

5. All controls centralized on the head stock easy operation and change.

6. Clamping for assemblies and speed change of spindle achieved by hydraulic power.

7. The Main parts are made by machine center with high precision and efficiency, ensuring reliability and high quality.

8. Integrating technology for casting parts is excellent, adopting casting equipment, ensuring high quality of material for basic parts.

9. Spindle parts are made by special high quality steel heat treatment ensuring high strength and durability.

10. Main gears are all precision grind, ensuring high precision and low noise.

Product Parameters

Specification	Z3032X10	Z3040X14	Z3050X16	Z3063X18	Z3080X20
Max drilling diameter (mm)	32	40	50	63	80
Distance between spindle axis and coulumn(mm)	170-1100	260-1210	350-1500	400-1600	550-1600
Spindle travel(mm)	120	260	350	400	450
Spindle taper(morse)	MT4	MT4	MT5	MT6	MT6
Number of spindle speeds	6	12	12	16	16
Steps of spindle feeds	3	3	4	16	16
Radial ratation angle	360	360	360	180	180
Main motor (kw)	1.5	2.2	4	5.5	7.5

Spindle Auto Feeding Drilling And Tapping Machines Radial Arm Drilling Machine Price 0

Spindle Auto Feeding Drilling And Tapping Machines Radial Arm Drilling Machine Price 1

Spindle Auto Feeding Drilling And Tapping Machines Radial Arm Drilling Machine Price 2

Why Choose Us?

Baishun machinery is professional machine tool manufacturer in China Mainland, we have more than 30 year experience in product design and manufacture, we always follow the best Technology design & manufacture idea in our products, try our best to provide our customer the most cost-effective machine tool and accessories.

Spindle Auto Feeding Drilling And Tapping Machines Radial Arm Drilling Machine Price 3

Tags:

Z3080 Hydraulic Radial Drilling Machine with 80mm Max Drilling Diameter 450mm Spindle Travel and 360° Radial Rotation Angle
